1. Introduction to Activity Diagrams

An Activity Diagram is a behavioral diagram in the Unified Modeling Language (UML) that depicts the flow of control or object flow within a system. Unlike class diagrams which show static structure, activity diagrams visualize the dynamic aspects of a system.

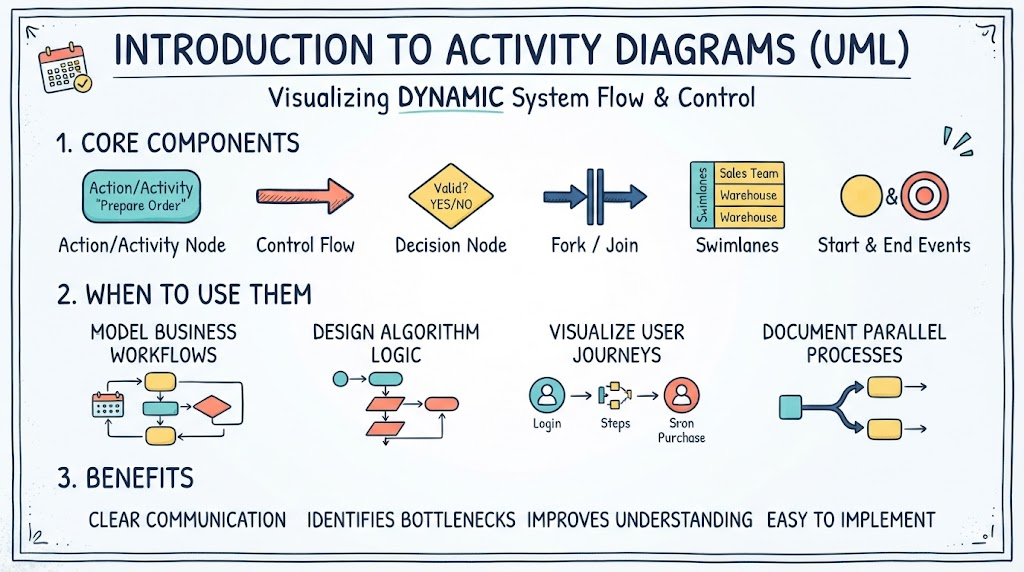

Core Components

Action/Activity Nodes: Rounded rectangles representing a specific task or step.
Control Flow: Arrows showing the sequence of execution.
Decision Nodes: Diamonds representing conditional branching (if/else).
Fork/Join Bars: Thick horizontal or vertical bars representing parallel processing or synchronization.
Swimlanes: Vertical or horizontal partitions that organize activities by actor, department, or system component.
Start/End Events: Solid circles (start) and bullseye circles (end).

When to Use Them

Modeling business workflows and standard operating procedures.
Designing algorithm logic before coding.
Visualizing use case scenarios and user journeys.
Documenting parallel processes and multi-threaded systems.

2. Usage Cases, PlantUML Example, and the “Diagram-as-Code” Revolution

Common Usage Cases

E-Commerce Checkout: Visualizing cart validation, payment gateway interaction, and inventory updates across different swimlanes (User, Frontend, Backend, Payment Provider).
CI/CD Pipeline: Mapping build, test, deploy stages with parallel testing forks and deployment decision gates.
User Onboarding: Tracking registration, email verification, profile setup, and tutorial flows.
API Request Lifecycle: Showing authentication, rate limiting, processing, caching, and response generation.

VPasCode / PlantUML Example

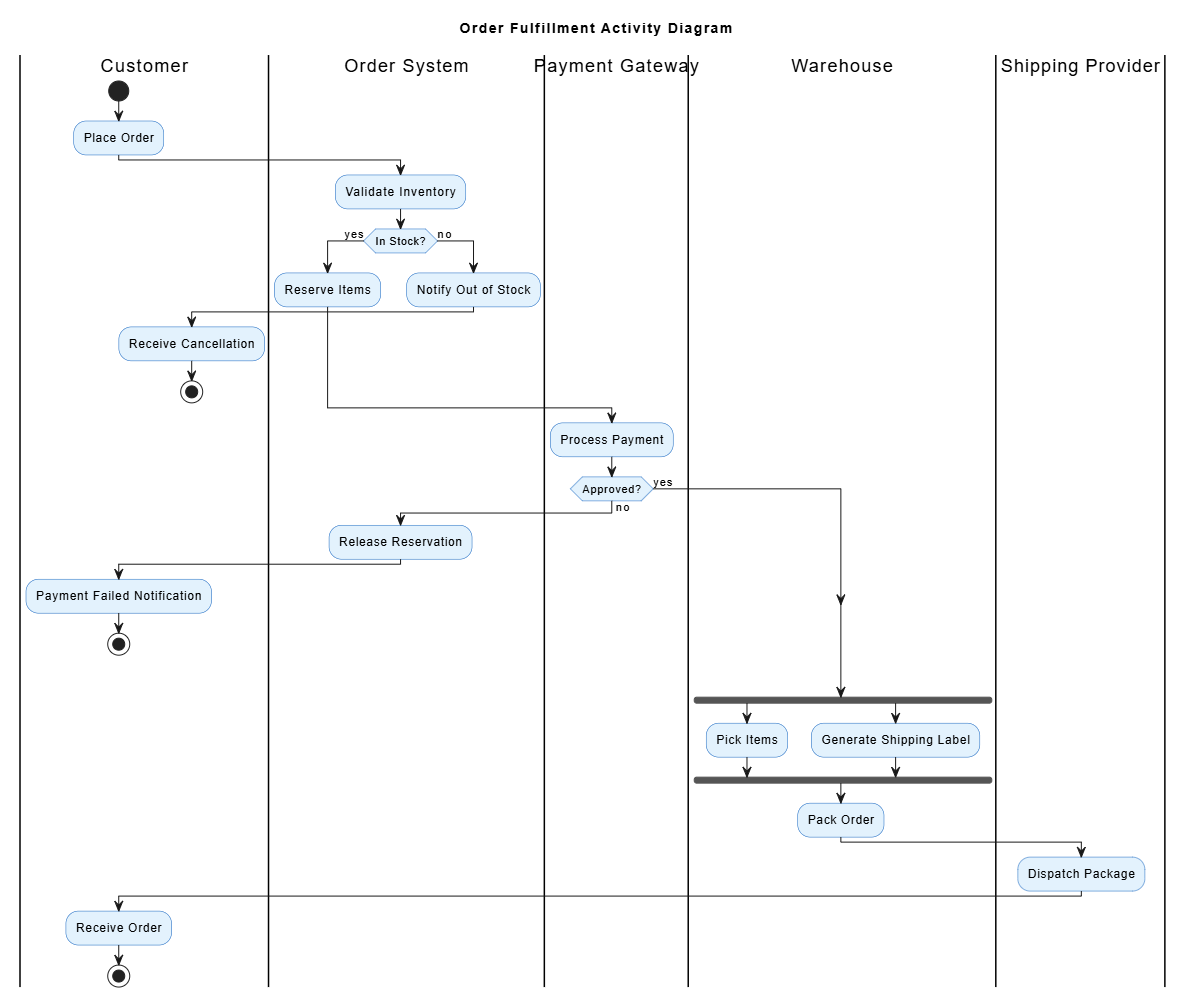

Below is a PlantUML script representing an Order Fulfillment Process. This syntax is compatible with Visual Paradigm’s VPasCode engine.

Plantuml Edit Plantuml in VPasCode

@startuml OrderFulfillment
title Order Fulfillment Activity Diagram
skinparam ActivityBackgroundColor #E3F2FD
skinparam ActivityBorderColor #1565C0

|Customer|
start
:Place Order;

|Order System|
:Validate Inventory;
if (In Stock?) then (yes)
  :Reserve Items;
else (no)
  :Notify Out of Stock;
  |Customer|
  :Receive Cancellation;
  stop
endif

|Payment Gateway|
:Process Payment;
if (Approved?) then (yes)
else (no)
  |Order System|
  :Release Reservation;
  |Customer|
  :Payment Failed Notification;
  stop
endif

|Warehouse|
fork
  :Pick Items;
fork again
  :Generate Shipping Label;
end fork
:Pack Order;

|Shipping Provider|
:Dispatch Package;

|Customer|
:Receive Order;
stop
@enduml

Edit Plantuml in VPasCode

Why Diagram-as-Code is Popular Now

Version Control Friendly: Text files can be tracked in Git, enabling diff reviews, branching, and history tracking—impossible with binary image files.
Consistency & Standards: Eliminates “style drift.” Layout and formatting are handled by the rendering engine, ensuring uniform documentation.
Automation Integration: Can be embedded in CI/CD pipelines to auto-generate documentation on every commit.
Reusability: Code snippets, macros, and includes allow for modular diagram design.
Accessibility: Text-based diagrams are searchable, screen-reader friendly, and easily indexed.

Why Diagram-as-Code is AI-Friendly

LLM Native Format: Large Language Models are trained on vast amounts of code. PlantUML/Mermaid syntax is far more token-efficient and structurally predictable than describing a visual layout in natural language.
Deterministic Output: AI can generate syntactically correct code that renders predictably, whereas generating pixel-perfect images directly is still unreliable.
Easy Iteration: You can ask AI to “add a retry loop to the payment step,” and it modifies specific lines of code rather than regenerating an entire image.
Bidirectional Translation: AI can convert legacy documentation → code, code → diagram, or diagram code → refactored code seamlessly.

3. Using Visual Paradigm AI Chatbot → VPasCode

Visual Paradigm integrates an AI assistant that acts as a bridge between natural language intent and precise VPasCode/PlantUML output.

How to Use It

Open VP AI Chatbot: Access via the Visual Paradigm toolbar or web platform.
Describe Your Intent: Use natural language, e.g., “Create an activity diagram for a hotel booking system with swimlanes for Guest, Reception, and Room Service. Include a decision node for room availability and parallel tasks for confirmation email and calendar sync.”
Generate VPasCode: The AI returns validated VPasCode/PlantUML syntax.
Render Instantly: Paste into the VP editor or use the built-in preview to see the diagram immediately.
Iterate Conversationally: Say “Add error handling for payment failure” or “Change the fork to happen after validation” — the AI modifies the existing code contextually.
Export: Save as SVG, PNG, PDF, or keep as code in your repository.

Benefits & Convenience

Benefit	Description
Zero Syntax Learning Curve	Get production-ready diagrams without memorizing PlantUML keywords
Context-Aware Editing	AI understands your existing diagram and makes surgical changes
Best Practices Built-In	AI applies UML conventions, proper swimlane usage, and naming standards automatically
Rapid Prototyping	Go from idea to visual in seconds during meetings or planning sessions
Documentation Generation	Ask AI to generate descriptive text from the diagram code for wikis/docs
Cross-Diagram Consistency	AI can align activity diagrams with related sequence or class diagrams

4. Why Modeling is Now Agile & Feasible with AI + As-Code

Historically, UML modeling was seen as heavyweight, waterfall-era overhead. AI and as-code have fundamentally changed this equation.

Streamlining the Problems of Traditional Modeling

❌ Old Problem: Modeling Takes Too Long

✅ AI Solution: What took hours of drag-and-drop now takes minutes of conversation. AI handles layout, styling, and boilerplate, letting architects focus on logic, not pixels.

❌ Old Problem: Diagrams Go Stale Immediately

✅ As-Code Solution: Diagrams live in the same repo as source code. PRs that change behavior must update the diagram code. Reviewers catch mismatches during code review. Documentation stays synchronized organically.

❌ Old Problem: High Skill Barrier

✅ AI Solution: Domain experts who understand the process but not UML can describe workflows in plain English. AI translates expertise into formal notation, democratizing modeling.

❌ Old Problem: Feedback Loops Are Slow

✅ Combined Solution: During sprint planning, a team can verbally describe a flow → AI generates the diagram instantly → team validates/corrects in real-time → refined code is committed before the meeting ends. Modeling becomes a collaborative thinking tool, not a post-hoc documentation chore.

❌ Old Problem: Tool Lock-In & Portability

✅ As-Code Solution: PlantUML/VPasCode is vendor-neutral text. Teams can switch tools, render in multiple platforms, and never lose their intellectual property to proprietary binary formats.

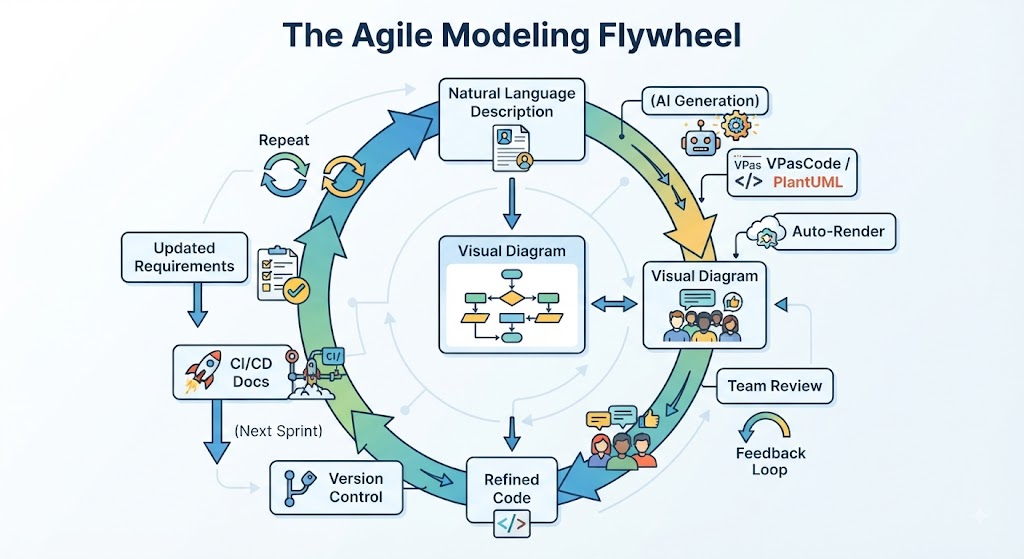

The Agile Modeling Flywheel

Natural Language Description
        ↓ (AI Generation)
VPasCode / PlantUML
        ↓ (Auto-Render)
Visual Diagram ←→ Team Review
        ↓ (Feedback Loop)
Refined Code → Version Control → CI/CD Docs
        ↓ (Next Sprint)
Updated Requirements → Repeat

Key Takeaway

Modeling is no longer a phase—it’s a continuous, lightweight practice. AI removes the friction of creation, as-code removes the friction of maintenance, and together they make architectural visualization an integral part of agile development rather than an afterthought. Visual Paradigm’s AI-to-VPasCode pipeline operationalizes this shift, making professional-grade modeling accessible, sustainable, and genuinely useful in modern software delivery.
