Entity Relationship Diagrams (ERDs) serve as the blueprint for database architecture. Yet, even experienced designers encounter friction when translating business logic into data models. The ambiguity often stems from terminology overlaps and subtle distinctions between structural elements. This guide addresses the most persistent questions regarding keys, cardinality, and relationships.
Understanding these concepts prevents data redundancy and ensures query performance. We will walk through 15 specific points of confusion, breaking them down into clear, actionable definitions. Each section includes practical examples and visual descriptions to clarify the underlying mechanics.

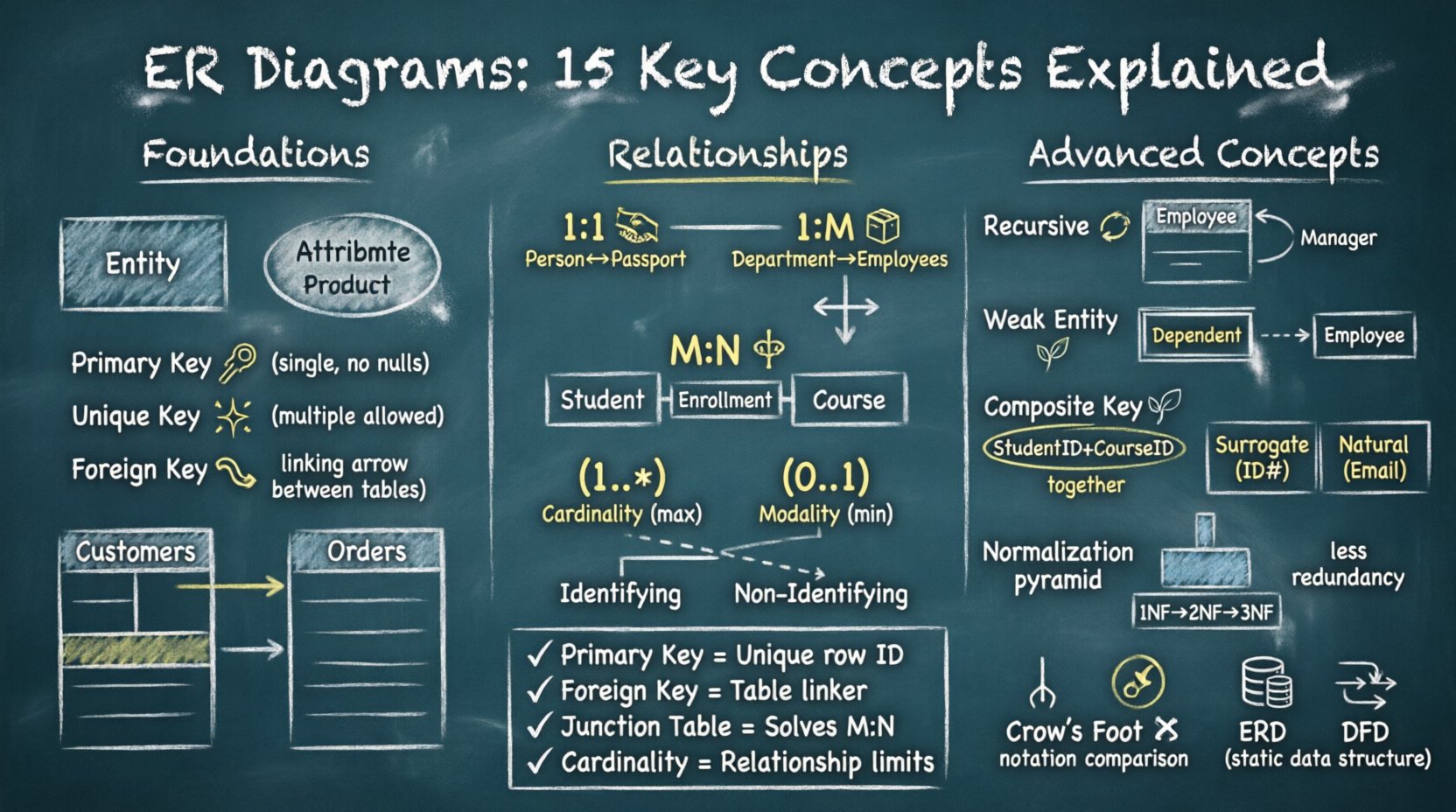

1. What is the difference between an Entity and an Attribute? 🏷️
An Entity represents a real-world object or concept about which data is stored. It is typically depicted as a rectangle. Examples include Customer, Product, or Order.
An Attribute describes a property of an entity. It is depicted as an oval connected to the entity. For example, CustomerName or ProductPrice are attributes of the entities mentioned above.
- Entity: The noun (Who/What).
- Attribute: The adjective (What describes it).
Confusion often arises when an attribute contains multiple pieces of information. If Address is an attribute, it might be better to split it into Street, City, and Zip for better normalization.
2. How do Primary Keys differ from Unique Keys? 🔑
Both ensure data integrity, but their usage varies.
- Primary Key: Uniquely identifies every row in a table. A table can have only one primary key. It cannot contain null values.
- Unique Key: Ensures all values in a column are distinct. A table can have multiple unique keys. Null values are often permitted (depending on the implementation).
Think of a Primary Key as a Social Security Number for a record. A Unique Key is like a Passport Number—also unique, but you might have more than one unique identifier available for a person.
3. What is a Foreign Key and how does it link tables? 🔗
A Foreign Key is a field (or collection of fields) in one table that refers to the Primary Key in another table. It establishes a link between the two tables.
Consider an Orders table. It needs to know which Customer placed the order. The CustomerID in the Orders table is the Foreign Key.
| Table | Column | Role |
|---|---|---|
| Customers | CustomerID | Primary Key |
| Orders | CustomerID | Foreign Key |
This relationship allows the database to enforce referential integrity, ensuring no order exists without a valid customer.
4. When is a Relationship One-to-One? 🤝
A One-to-One (1:1) relationship occurs when a single record in Table A relates to exactly one record in Table B, and vice versa.
- Example: A Person and a Passport.
- Implementation: Often implemented by placing the Primary Key of one table as the Foreign Key in the other table.
This is common when splitting an entity to optimize performance or security. For instance, moving sensitive data like SocialSecurityNumber into a separate table linked 1:1.
5. How does a One-to-Many Relationship work? 📦
This is the most common relationship type. A single record in Table A relates to multiple records in Table B, but a record in Table B relates to only one record in Table A.
- Example: Department to Employee.
- Direction: One Department has Many Employees.
In the ERD, this is drawn with a line connecting the two entities. The side with the “Many” receives the Foreign Key.
6. Why are Many-to-Many Relationships problematic? ⚖️
A Many-to-Many (M:N) relationship exists when multiple records in Table A relate to multiple records in Table B. Directly implementing this in a relational database is not possible without a bridge.
- Issue: You cannot simply add a Foreign Key to one table, as one row would need to store multiple IDs.
- Solution: Create a junction table (associative entity).
For Student and Course, create a Enrollment table containing StudentID and CourseID. This converts the M:N into two 1:Many relationships.
7. What is the difference between Cardinality and Modality? ⚖️
These terms describe the constraints of a relationship, often confused due to similar notation.
- Cardinality: The maximum number of instances. (e.g., One-to-Many).
- Modality: The minimum number of instances. (e.g., Mandatory or Optional).
Example: A Employee must have a Department (Modality: Mandatory/1). A Department can exist without an Employee (Modality: Optional/0).
8. Identifying vs. Non-Identifying Relationships 🧩
The distinction lies in the dependency of the child entity.
- Identifying: The child entity cannot exist without the parent. The Foreign Key is part of the Child’s Primary Key. Often shown with a solid line.
- Non-Identifying: The child entity can exist independently. The Foreign Key is not part of the Primary Key. Often shown with a dashed line.
Consider a Invoice (Parent) and InvoiceLineItem (Child). The line item is Identifying because an item is meaningless without an invoice.
9. What is a Recursive Relationship? 🔄
A recursive relationship occurs when an entity relates to itself. This is common in hierarchical data.
- Example: An Employee table where one employee is the Manager of others.
- Implementation: A Foreign Key in the same table pointing to the Primary Key of the same table.
This structure supports organizational charts or product categories with sub-categories.
10. How do Weak Entities differ from Strong Entities? 🌱
A Strong Entity has a Primary Key that is independent of other entities. A Weak Entity cannot be uniquely identified without the Primary Key of a parent entity.
- Visual: Weak entities are often drawn with double rectangles.
- Dependency: They rely on an Identifying Relationship.
Example: A Dependent (spouse/child) in a company system. A dependent record usually has no unique ID of its own; it relies on the EmployeeID to be identified.
11. When should you use a Composite Key? 🧩
A Composite Key consists of two or more columns that together uniquely identify a row. It is used when no single column provides uniqueness.
- Scenario: A StudentCourse table.
- Keys: StudentID + CourseID.
Neither ID is unique on its own in this context, but the combination is. Be cautious, as composite keys can complicate Foreign Key relationships in other tables.
12. Surrogate vs. Natural Keys: Which to choose? 🔢
This is a strategic design decision.
- Natural Key: A real-world attribute (e.g., Email, SSN). Pros: Meaningful. Cons: Can change, might be long, or contain sensitive info.
- Surrogate Key: A system-generated ID (e.g., Auto-increment integer). Pros: Stable, short, fast. Cons: No business meaning.
Best practice often favors Surrogate Keys for internal table structure, while Natural Keys remain useful for search and reporting.
13. How does Normalization affect the ERD? 📉
Normalization is the process of organizing data to reduce redundancy. The ERD evolves as you normalize.
- 1NF: Eliminate repeating groups.
- 2NF: Remove partial dependencies.
- 3NF: Remove transitive dependencies.
Higher normalization usually increases the number of tables and relationships. While it improves data integrity, it can complicate queries. Balance the level of normalization with query performance needs.
14. Crow’s Foot vs. Chen Notation: Which is standard? 👣
Notation refers to how relationships are visually represented.
- Crow’s Foot: Uses symbols like lines, crosses, and circles at the ends of lines. Very common in modern tools.
- Chen: Uses diamonds for relationships and rectangles for entities. More academic.
Crow’s Foot is generally preferred for implementation because it maps more directly to SQL constraints. However, Chen notation is excellent for high-level conceptual modeling.
15. ERD vs. Data Flow Diagrams (DFD) 📊
These serve different purposes in the system design lifecycle.
- ERD: Focuses on data structure and storage. Static view of relationships.
- DFD: Focuses on data movement and processes. Dynamic view of how data flows through the system.
Do not confuse the two. An ERD tells you what data exists. A DFD tells you how that data is processed. Both are needed for a complete system specification.
Summary of Key Concepts 📝
| Concept | Key Takeaway |
|---|---|
| Primary Key | Unique ID for a row. No nulls allowed. |
| Foreign Key | Link to another table’s Primary Key. |
| Cardinality | Max relationships (1, 1..N). |
| Junction Table | Solves Many-to-Many relationships. |
Mastering these distinctions allows for robust database design. The goal is clarity, integrity, and scalability. Review your diagrams against these points to ensure your model reflects the business reality accurately.
By resolving these 15 common confusions, you build a foundation for systems that are easy to maintain and extend. Focus on the data semantics, and the technical implementation will follow naturally.
